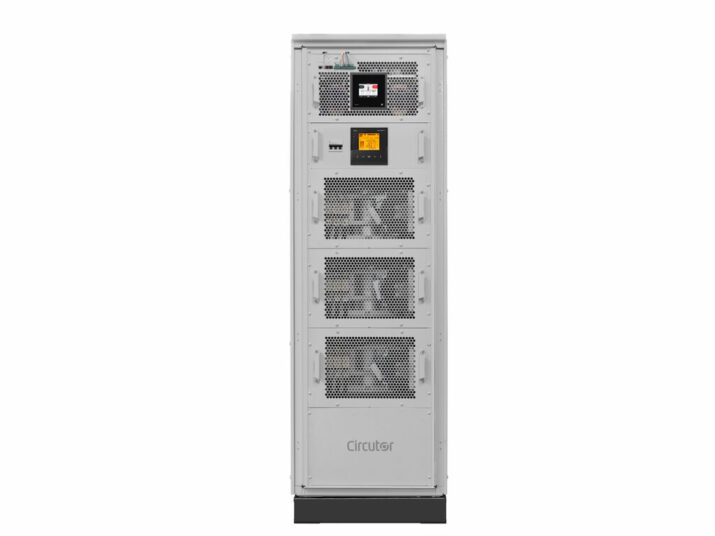

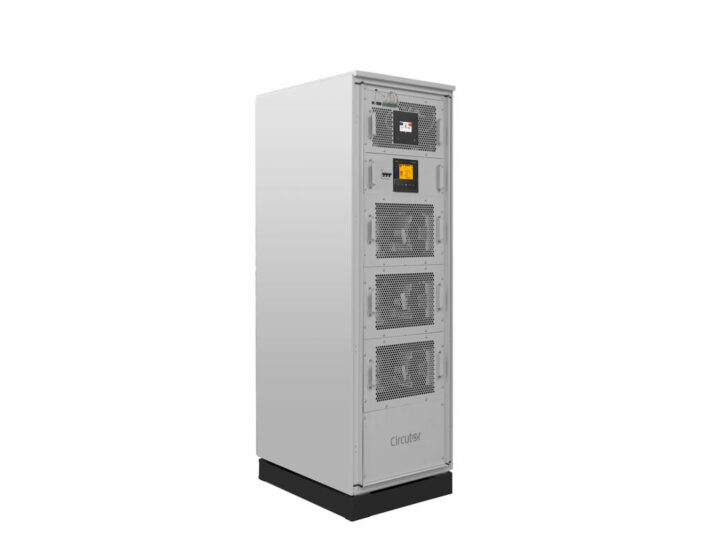

OPTIM SVGm-200-440

SKU: RG20F1

  • Bancurile combinate de compensare a puterii reactive din gama OPTIM SVGm constau dintr-o combinație între un generator static de putere reactivă, SVGm, și un set de trepte de filtre de respingere acordate la 189 Hz (p = 7%), acționate de un contact și controlate de un regulator al factorului de putere Computer SMART III.
  • Utilizarea ambelor tehnologii într-o singură unitate de compensare produce o compensare precisă a puterii reactive, cu o capacitate ridicată de a reacționa la schimbările de putere care necesită o compensare care reprezintă un procent din puterea totală a dispozitivului, oferind în același timp un raport cost-eficiență ridicat, toate acestea într-o dimensiune mai mică decât modelul format exclusiv din trepte de condensator reglementate.
  • În mod similar, utilizarea unui SVGm ca supliment la treptele acționate de contactor asigură, de asemenea, compensarea puterii capacitive, care este din ce în ce mai solicitată, și reduce problemele legate de compensarea puterii reactive în instalațiile care conțin un sistem fotovoltaic cu autoalimentare.

Caracteristici

  • Frequency (Hz): 50 Hz
  • Nr steps: 2
  • kvar (400 V): 182
  • kvar (440 V): 200
  • Composition: 1 x 100 kvar + 100 kvar
  • Use voltage (V): 400

TQSplit Core Current Transformers – Product Range Summary

The TQSplit Core Current Transformers provide a convenient and efficient solution for measuring electrical parameters without the need to interrupt the power supply. Designed to simplify installation and reduce downtime, the TQ series transformers are ideal for situations where continuous operation is essential, such as in industrial or commercial facilities.

Key Features and Advantages

✅ Non-Disruptive Installation:

  • The split-core design allows for installation without disconnecting conductors or interrupting the power supply, minimizing economic losses from production downtime.
  • Ideal for retrofitting existing systems or deploying in environments where halting operations is not feasible.

✅ Push-Button Operation:

  • Instant opening with a push button simplifies the installation process, eliminating the need for removable parts.

✅ Compact and Lightweight Design:

  • Reduced size and weight make them easy to install in confined spaces and electrical panels.

✅ Versatile Installation Options:

  • Can be installed on flat beds, DIN rails, or directly onto conductors.
  • Non-metallic fastening components ensure secure mounting on busbars and plates.

✅ High Accuracy:

  • Ensures precise current measurement for network analysers and monitoring equipment, with accuracy levels of Type 0.5, 1, or 3.

✅ Pre-Sealable:

  • Terminal block can be sealed to prevent tampering or accidental disconnection.

✅ Low Power Loss:

  • Optimized for use with low-consumption electronic equipment.

Product Range

Model Primary Current Range Flat Bed Size Secondary Output Accuracy Type
TQ-6 100 A to 400 A 20 x 30 mm …/5A, …/1A, or …/250mA 0.5 / 1 / 3
TQ-8 300 A to 1000 A 60 x 80 mm …/5A, …/1A, or …/250mA 0.5 / 1 / 3

Applications

The TQ series transformers are suitable for a wide range of electrical measurement applications, including:

  • Network analysers
  • Power quality analysers
  • Submetering counters
  • Ammeters (analogue and digital)
  • Reactive power regulators
  • Active filters and static reactive compensators
  • Programmable automation systems

Summary

The TQSplit Core Current Transformers provide an efficient and accurate solution for electrical current measurement without operational disruption. Their innovative split-core design, push-button opening, and versatile installation options make them the ideal choice for industrial and commercial environments where minimizing downtime is critical.
